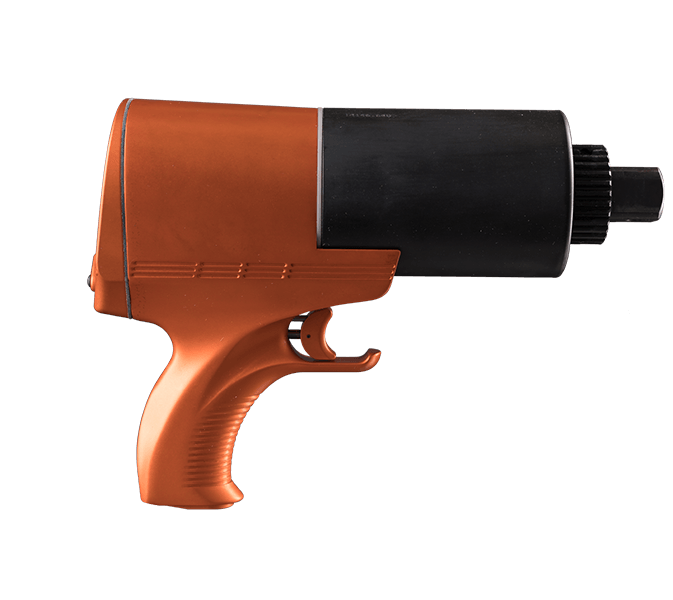

Single-Speed Torque Gun

  • Accurate torque with low noise and low vibration
  • Maximum torque requires only 90 PSI
  • Extensions available for job-specific applications
  • Made from lightweight, high-strength materials
  • Precision gearing produces constant calibrated power
  • Highest power-to-weight ratio of any comparable product
  • Splined reaction area allows for the use of custom reaction fixture
Torque Range
85 ft-lbs. – 8,035 ft-lbs.
115 Nm – 10,894 Nm *please contact for torque chart
Square Drive
.75 in. – 1.5 in.
19 mm – 38 mm
Weight
7.20 lbs. – 26.50 lbs.
3.27 kg – 12.02 kg
